Precise Color
It features 7″ 16:10 LCD panel with 1920×1200 Full HD resolution, 1000:1 high contrast, 170° wide viewing angles, 500cd/m² high brightness, which offers outstanding viewing experience.
Integrated New Advanced Functions
Lilliput creatively integrated column (YRGB peak), time code, waveform, vector scope & audio level meter into field monitor. And multiple modes for optional.

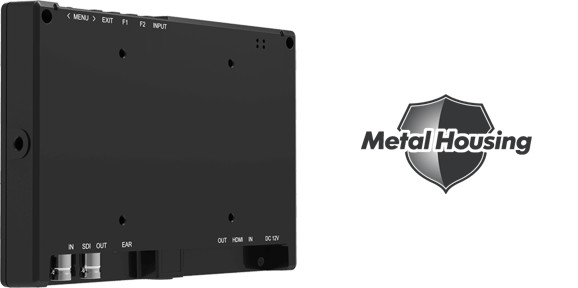

Metal Housing Design
Thinner (22mm) with a firm metal body, makes a better protection from vibration, drop & bad environment outside. Longer life time for the device.

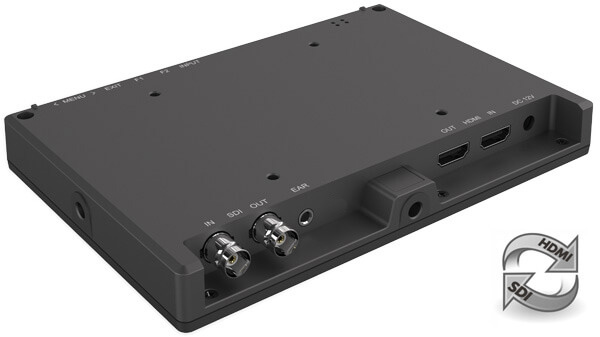

SDI and HDMI Cross Conversion
With high quality HDMI & 3G-SDI inputs, make sure that precise color can be controlled under multiple displays conveniently.
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.

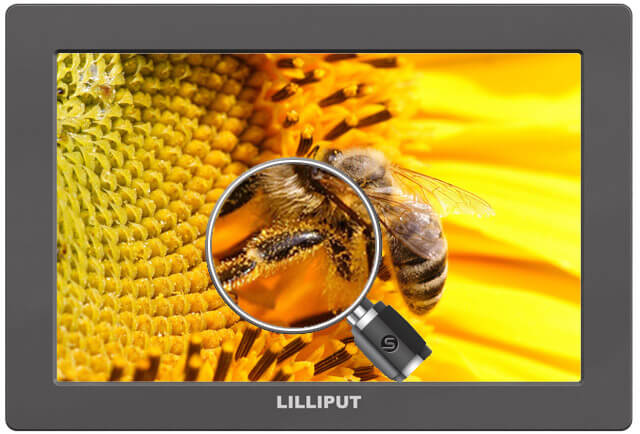

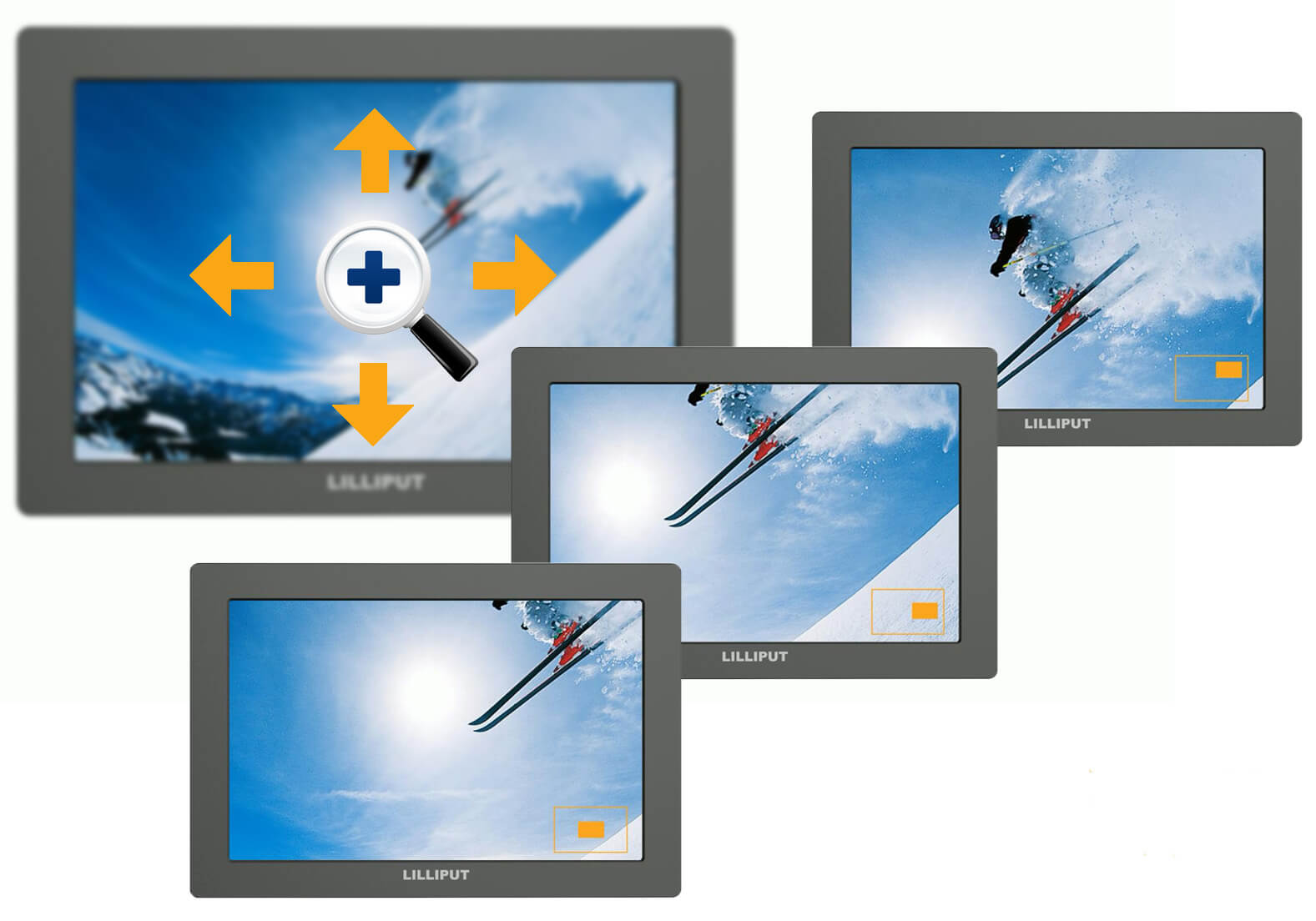

Pixel Zoom
Creatively integrated Pixel Zoom function into Q7, which can enlarge and move the selected area and make details of image much more obvious.
More Auxiliary Functions
More professinal functions assist users to accurately monitor when shooting, making and playing movies/videos.
[/tab]
[tab title=“Specification“]
|
DISPLAY
|
Display Screen | 7″ IPS |
|---|---|---|
| Physical Resolution | 1920×1200 | |
| Aspect Ratio | 16:10 | |
| Brightness | 500cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 170°/170°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 1 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB | 1080p(60/59.94/50) | |
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| Level B 2x | 1080i(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 1A |
| Input Voltage | DC 7-24V | |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤12W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 182×124×22mm |
| Weight | 405g |
