Popis

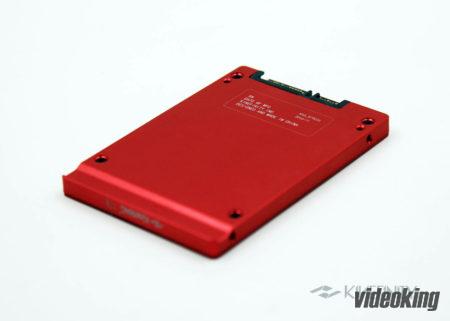

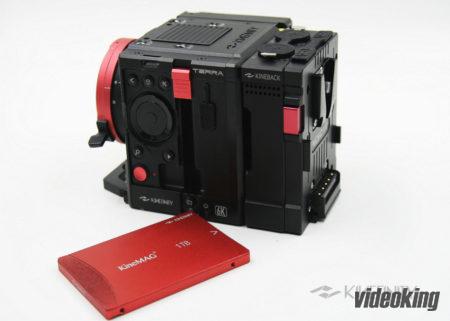

7mm KineMAG/KineMAG+ SSD is born to match Kine cameras: it handles full bandwidth RAW recording, with reliability and long life, all-metal case and good heat dissipation. There is slots on one end of KineMAG+, which facilitates pull-plug operation between the SSD and TERRA body.
As Kine cameras record handle full bandwidth RAW, digital cameras demand strict requirements of KineMAG+ on data writing:
Reliable with long life: as the data needs to be written into SSD continuously from cameras, stable writing speed and long life are essential requirements on professional SSD. As KineMAG+ employs excellent controller and stable flash memory chips, it’s more reliable and has longer life that ordinary SSD.
Industrial standards: KineMAG+ has a standard SATA interface and so can be used directly by a USB to SATA cable (You may use HFS+, or Macdrive™ or freeware HFSexplorer if your workstation run Windows™, since KineMAG™ SSD file system is MAC HFS). This industry standard interface makes the workflow with Kine cameras more quickly and easily, saves you the cost of special adapters to access the RAW data recorded by camera.
KineMAG+ has capacity of 512GB and 1TB, while KineMAG as 120GB or 240GB. Bandwidth of 4K uncompressed CinemaDNG at 30fps is around 400MB/s. KineMAG+ handles the speed, and also for 6K KineRAW codec. If record 25fps, the record time over different codecs and different resolutions are shown as follows (in minutes):
|
Settings
|
KineMAG 120GB
|
KineMAG 240GB
|
KineMAG+ 500GB
|
KineMAG+ 1TB
|
|---|---|---|---|---|
| 2K@25fps KineRAW(.krw) | 48 | 96 | 200 | 400 |
| 2K@25fps Cineform RAW(.mov) | 100 | 200 | 400 | 800 |
| 2K@25fps CinemaDNG(.dng) | 30 | 60 | 120 | 240 |
| 3K@25fps KineRAW(.krw) | 24 | 48 | 100 | 200 |
| 3K@25fps Cineform RAW(.mov) | 50 | 100 | 200 | 400 |
| 3K@25fps CinemaDNG(.dng) | 12 | 24 | 50 | 100 |
| 4K@25fps KineRAW(.krw) | 12 | 24 | 50 | 100 |
| 4K@25fps CinemaDNG(.dng) | 6 | 12 | 25 | 50 |
| 6K@25fps KineRAW(.krw) | 6 | 12 | 25 | 50 |
