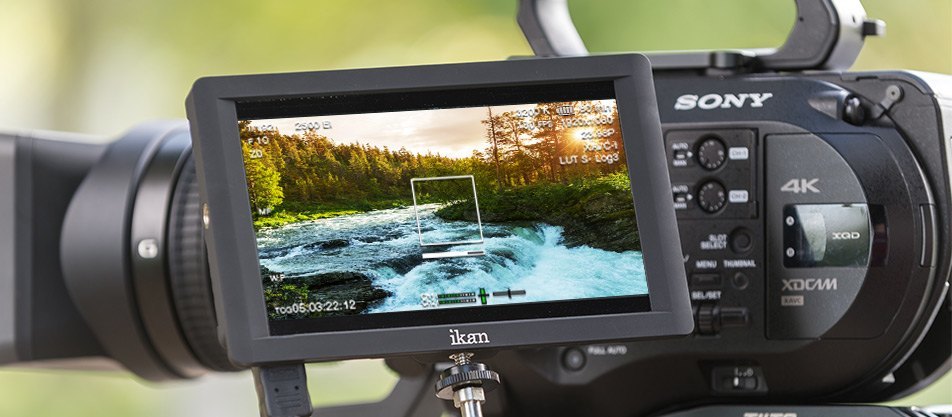

The Ikan DH7 Full HD monitor features Ultra HD 4K HDMI capabilities all within a lightweight, affordable package. The 7″ monitor’s 1920×1200 HD resolution combined with an IPS screen delivers vibrant color and strong viewing angles. It can handle 4K signals from the most popular 4K HDMI cameras such as the Sony A7S II, Sony A7R II, Panasonic GH4R, Panasonic DVX200 and others. The DH7 offers two programmable feature buttons as well as 1/4-20 mounts all the way around. It’s no surprise the DH7’s simple, practical design makes it the ideal size and weight for field production.
4K Signal Capability
The DH7 supports HDMI input and output signals up to 3840×2160 video resolution. It also offers 1:1 pixel mapping and peaking to ensure everything stays in sharp focus.
1920 × 1080 IPS Panel
The high quality IPS panel will render the best possible image regardless of the monitor’s signal. With deep black and nearly perfect viewing angles, the DH7 is the perfect companion for the shooter on the go.
Inputs and Outputs
It’s incredibly easy to set your 4K HDMI input and output signals on the DH7. A headphone jack and audio meter display allows you to create clean audio levels. A USB port is also included for software updates.
The DH7 monitor comes with the Sony L series and Canon E6 battery plate. In addition to supporting Ikan’s BP5 battery plate system, it’s also compatible with the Canon 900, Sony BP-U, Panasonic D54, Panasonic G6 and the Nikon EL-15!
Ikan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.
Movable pixel to pixel
The 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.
The DSLR Scaling function enables users to extend their DSLR camera’s HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen – convenience made simple.
|SUPPORTED VIDEO SIGNALS
|HDMI||720x480i & 720x480p @ 59.94, 60 Hz|
|720x576i @ 50 Hz|
|1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz|
|1920x1080i @ 50, 59.94, 60 Hz|
|1920x1080psf @ 24, 25, 29.97, 30 Hz|
|1920x1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz|
|3840x2160p @ 24, 25, 30 hz|
|4096x2160p @ 24 hz|
- 1x AC Adapter
- 1x Canon E6 Battery Plate
- 1x DH7 Monitor
- 1x Screen Protection Film
- 1x Screen Wipe
- 1x Shoe Mount
- 1x Sony L Series Battery Plate
- 1x Sunhood
- 1x USB Drive
|Aspect Ratio:||16 x 10|
|Build Material:||Heavy Duty Plastic|
|Color Depth:||16.7 Million|
|Color System:||PAL/NTSC/SECAM (Auto-Detected)|
|Dimensions:||7.2 x 4.5 x 0.6 in.|
|Dimensions (Metric):||184 x 116 x 17 mm|
|Input Voltage:||DC 7V – 24V|
|Operating Temperature:||0°C ~ 50°C (32°F ~122°F)|
|Pixel Pitch:||0.07875×0.07875 (mm)|
|Resolution:||1920 x 1200|
|Screen Size:||7 in.|
|Shipping Dimensions:||3 x 14.75 x 7.75 in.|
|Shipping Dimensions (Metric):||76.2 x 374.6 x 196.8 in.|
|Shipping Weight:||2 lbs|
|Shipping Weight (Metric):||0.91 kg|
|Viewing angle:||178° horizontal/178° vertical|
|Weight :||.5 lbs|
|Weight (Metric):||0.26 kg|
