[heading]Specification[/heading]

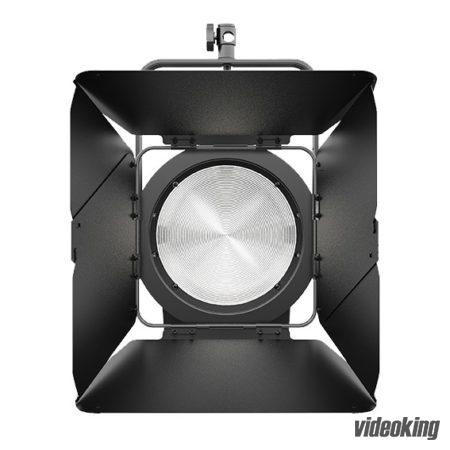

| Optical System | Focusable Fresnel | |
| Lens Diameter | 170 mm / 6.7″ | |
| Beam Angle | Rayzr 7 300: | 18° – 55° (Half Peak Angle) |
| Rayzr 7 300B: | 18° – 50° (Half Peak Angle) | |
| Rayzr 7 200: | 18° – 50° (Half Peak Angle) | |
| Rayzr 7 200BM: | 18° – 50° (Half Peak Angle) | |
| Weight | 6.4 kg (14.1 lbs) | |
| Mounting | 16 mm / 28 mm Combo Pin （Baby 5/8 inch / Junior 1-1/8 inch Combo Pin） | |
| Tilt Angle | 90° | |
| Power Supply Range | Rayzr 7 300(EU): | 180 – 264 V AC, 50 – 60 Hz |
| Rayzr 7 300(US): | 90 – 132 V AC, 50 – 60 Hz | |
| Rayzr 7 300B: | 95 – 280 V AC, 50 – 60 Hz | |
| Rayzr 7 200: | 95 – 280 V AC, 50 – 60 Hz | |
| Rayzr 7 200BM: | 95 – 280 V AC, 50 – 60 Hz | |
| Power Consumption | Rayzr 7 300: | 331 W Nominal, 352 W Maximum |
| Rayzr 7 300B: | 172 W Nominal, 192 W Maximum | |
| Rayzr 7 200: | 204 W Nominal, 223 W Maximum | |
| Rayzr 7 200BM: | 111 W Nominal, 115 W Maximum | |
| Power Connection | Neutrik power CON TRUE1 NAC3MPX; Plug: Neutrik power CON TRUE1 NAC3FX-W | |
| Battery DC Voltage Range | Rayzr 7 300: | 24 – 36 V DC |
| Rayzr 7 300B: | 24 – 36 V DC | |
| Rayzr 7 200: | 24 – 36 V DC | |
| Rayzr 7 200BM: | 12 – 24 V DC | |
| Battery DC Power Connection | Neutrik speak ON NL2MP; Plug: Neutrik speak ON NL2FX | |
| White Light | Rayzr 7 300: | Daylight 5,600 K |
| Rayzr 7 300B: | Bi-color 3,200 K to 5,600 K | |
| Rayzr 7 200: | Daylight 5,600 K | |
| Rayzr 7 200BM: | Bi-color 3,200 K to 5,600 K | |
| Color Temperature Tolerance | 100 K (nominal) | |
| Color Rendition | TLCI 95 – 98, CRI 94 ± 1 | |
| Dimming | 0 – 100% Continuous | |
| Control | RJ – 45 DMX In and Through, On-Board Controller | |
| Ambient Temperature Operation | -20 to +45º C (-4 to +113º F) | |
| Protection Class | IP 20 | |
| Certifications | CE, FCC, RoHS, REACH | |
