Angelbird Atomos 4K RAW
Angelbird Atomos 4K RAW 2
Angelbird Atomos 4K RAW 3
Angelbird Atomos 4K RAW 4

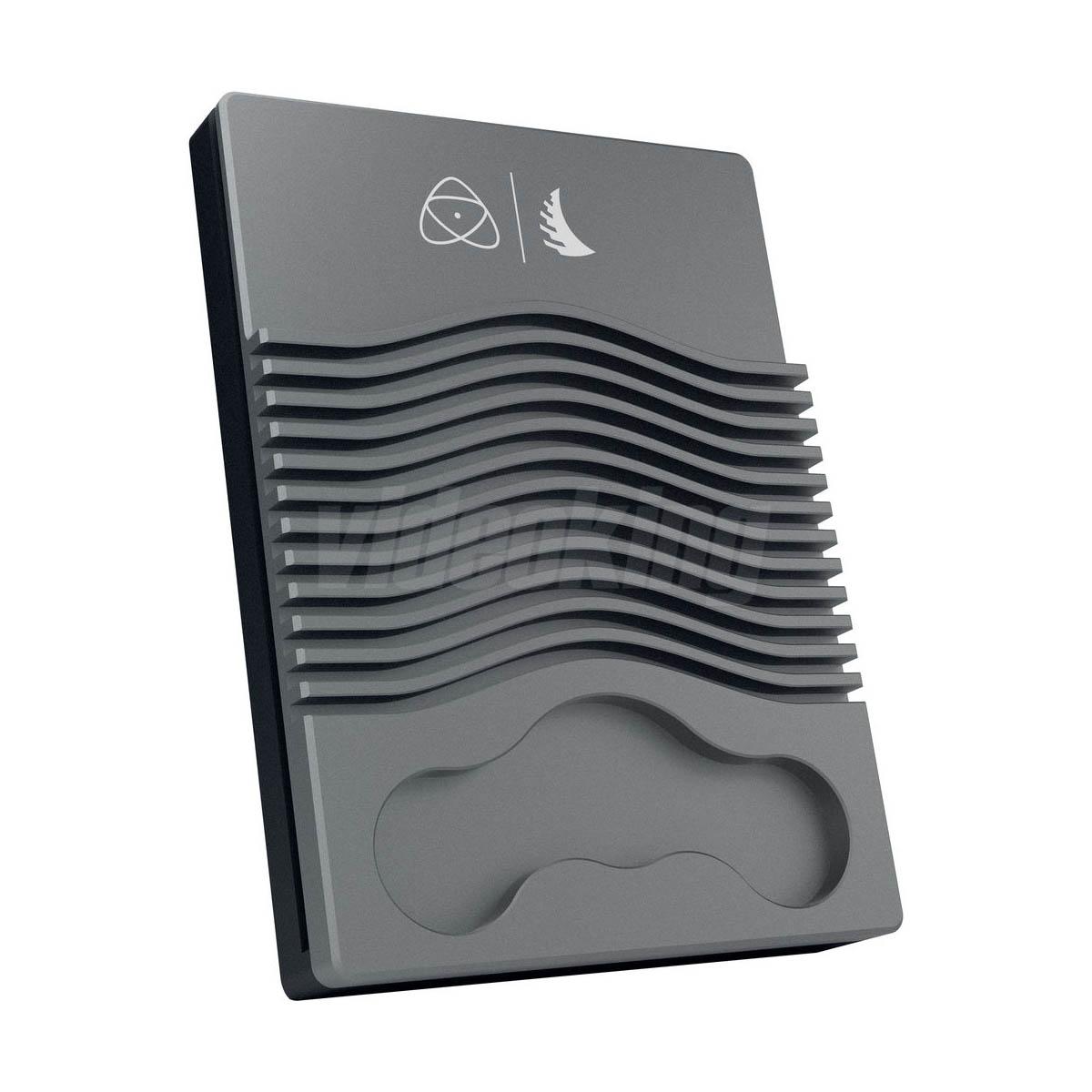

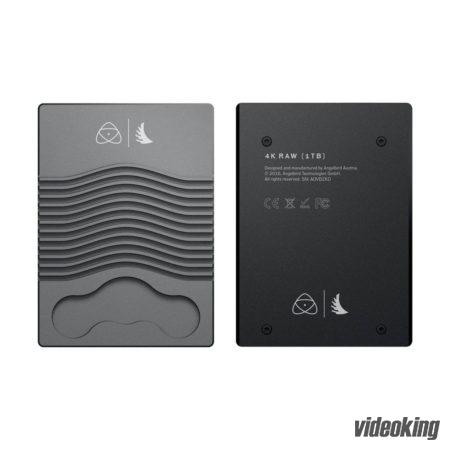

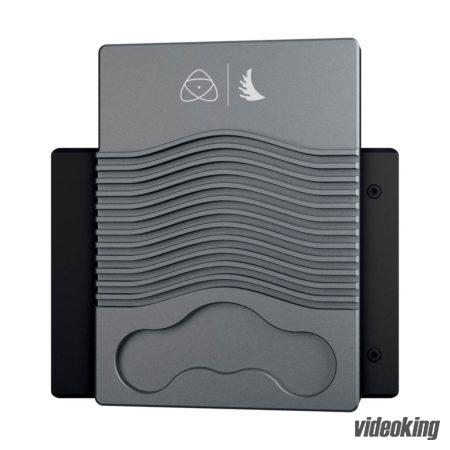

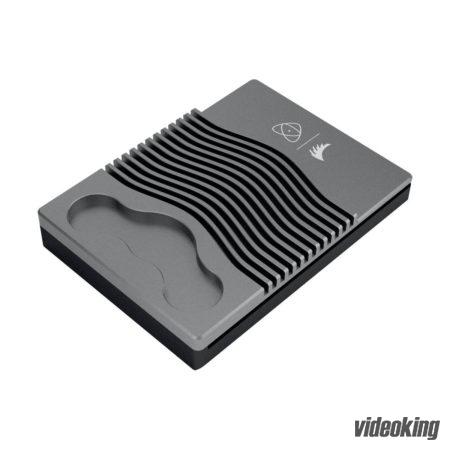

Angelbird Atomos Master Caddy 4K RAW (500GB / 1TB / 2TB / 4TB)

11 142 Kč – 57 137 Kč

  • 500GB, 1TB, 2TB SSD Designed for Atomos Products
  • Unified Caddy/SSD Design
  • No Assembly Required
  • ECC and TRIM Support
  • Up to 510 MB/s Write Speed
  • Up to 550 MB/s Transfer Speed
  • CNC Machined Housing
Vyčistit
Přidat do seznamu přání
Brands
Katalogové číslo: - Kategorie:

Popis

AUTHORIZED ACCESSORY
The Master Caddy 4K RAW is a custom designed SSD for Atomos products that integrates the Master Caddy rails into a rock solid aluminium body, quick grip release and unique Angelbird Stable Stream™ design for recording high data rate CDNG RAW and 4Kp60 video recordings.

Compatibility:

CAPACITY500 GB | 1 TB | 2 TB | 4 TB
FORM FACTORATOMOS MASTERCADDY 4K RAW
Compatible with *
DIMENSIONS104 x 75.5 x 11.7 mm (4.09 × 2.97 x 0.46 inch)
WEIGHT~ 220.0 g | ~ 7.7 oz

Performance

SEQUENTIAL READ SPEED1560 MB/s
SUSTAINED READ SPEED1540 MB/s
SEQUENTIAL WRITE SPEED1520 MB/s
SUSTAINED WRITE SPEED1500 MB/s
ACCESS TIME (R/W)~ 65 µs | 40 µs

Reliability

MTBF2,400,000 hours
DATA RELIABILITYBuilt-in EDC | ECC function
DATA RETENTION10 years at 25°
ENDURANCE
512 GB: up to 1,500 TBW
1 TB: up to 3,000 TBW
2 TB: up to 6,000 TBW
4 TB: up to 12,000 TBW
CERTIFICATIONSRoHS, CE and FCC compliant, REACH

Electrical

DC INPUT VOLTAGE5 V ± 10%
POWER USAGE (IDLE/MAX)
512 GB: 1.35 W / 4.7 W
1 TB: 1.35 W / 5.4 W
2 TB: 1.80 W / 5.4 W
4 TB: 1.80 W / 5.4 W

Technical

INTERFACESATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported,
SATA 3.0 compliant
OVER PROVISIONING~ 9 %
FEATURESTemperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ, adaptive thermal protection

Environmental

SHOCK RESITANCE (OPERATING)1000 G/0.5ms
VIBRATION RESISTANCE (OPERATING)2.17 GRMS
OPERATING TEMPERATURE-20°C ~ +105°C
STORAGE TEMPERATURE–40°C ~ +85°C
OPERATING HUMIDITY5 % to 95 % non-condensing

*Compatibility list

SUMO | SHOGUN | SHOGUN INFERNO | SHOGUN FLAME | SHOGUN STUDIO | NINJA FLAME | NINJA ASSASSIN

Package content

• ATOMOS 4K RAW
• Media Pouch for 1 x 4K RAW | 2 x CFast / CF | 3 x SD
• Activation code for the full limited warranty and additional free software licenses and content
