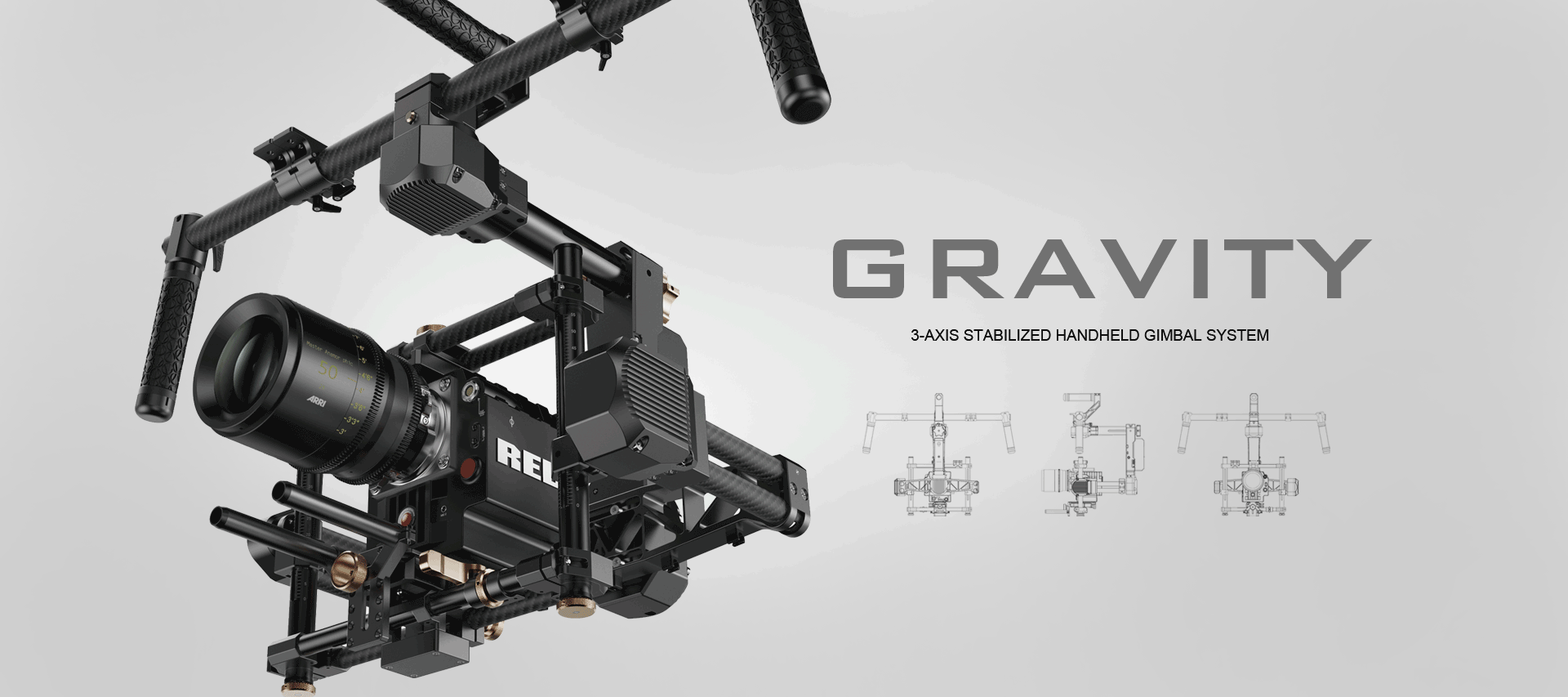

TILTAMAX GRAVITY – 3-Axis Stabilized Handheld Gimbal System

Cena: 108.500 Kč (89.669 Kč bez DPH)

  • Colour: Black
  • Material: Carbon Fibre, Aluminium-Alloy, Stainless Steel
  • Max payload:  15kg
  • Made of pure carbon fibre, titanium alloy and high strength aluminium magnesium alloy
  • Net weight 2.8kg Weight load up to 15KG
  • Unique pointing device, no drifting and no system crash
  • Traditional steadycam screw type balance control, faster and more accurate
  • Internal power and video signal cable, neat and clear
  • Power output can supply cameras, wireless follow focus etc.
  • Magnet power interface can supply tiltamax armor man for longer shooting time
  • Motion adapter included can be connected to wireless video
  • Transmitter, easier to control the picture
Cikkszám: GR-T03. Kategorie: , . Štíky: , .

Popis produktu

  • Description
  • Specification
  • Broschure
  • Videos
  • Adapt to different environment and shooting requirements
  • Our unique gimbal adjustment design, helps you to find the best balance in minutes,makes the whole operating easy and smooth .
  • Auto tune stability system installed, automatically adjust the balance,guarantees the best performance,no system crash,no drifting.
  • Smart power solution system,monitoring the power supply during shooting ,multiple voltage persistent outputs,can power different equipment at the same time (wireless follow focus,monitor and wireless video transmission etc.)to achieve internal and external hot-swap power supply
  • Extremely versatile, can be used for RED EPIC, SONY F55, SONY FS7 and ARRI MINI etc. Lightweight , total weight is 4KG.

The set includes

  • 1x 3-Axis Gimbal
  • 1x Quick-Release Baseplate
  • 1x Top Plate
  • 2x 25mm Adapter
  • 1x Handheld Bar
  • 1x Stand
  • 1x Charger
  • 2x SDI Signal Cable (50 cm)
  • 1x DC to DC Cable (50 cm)
  • 1x B Tap to DC Cable (75 cm)
  • 1x Power Module (B-Tapx2)
  • 1x Power Supplier Box (B-Tapx4)
  • 1x Motion Ejector
  • 1x Motion Controller
  • 1x Motion Power Cable
  • 1x Interface Cover
  • 1x B Tap to DC Cable (optional) (100 cm)
  • 1x 2.5 mm Allen Key
  • 1x 3 mm Allen Key
  • 1x 4 mm Allen Key

Users manual

Specification

Weight 2.8kg
Load Weight Max 15kg
Angular Vibration Range 0.02
Controlled Rotation Range TILT 90 to 20
ROLL 90 to 90
PAN 360
Maximum Control Speed 180/s
Working Temperature 19c to 50c
BATTERY:
Capacity 2200mmA
Voltage 14.8V
Battery Type Lipo 6s
Working Environment -19c to 50c
MOTION CONTROLLER:
Working Frequency 2.400Ghz-2.483Ghz
Signal Effective Distance 800m (open space)
Power Input DC1.1
Working Temperature 19c to 50c
Working Voltage 14.8V
